Precision Optical Oxygen Measurement

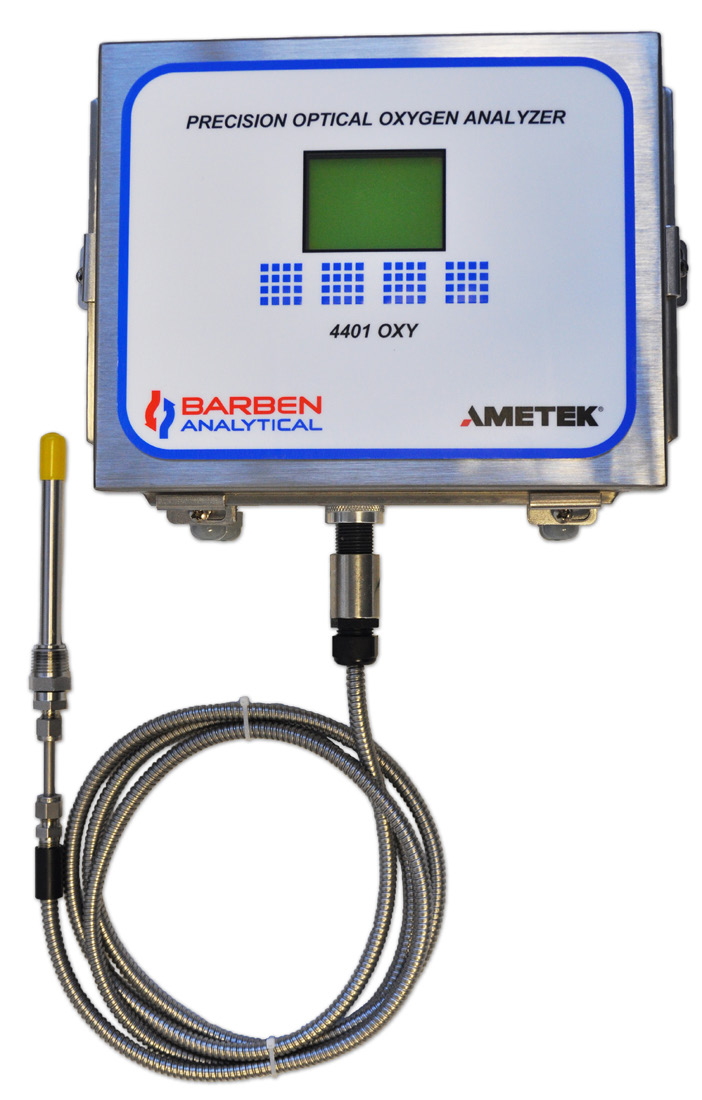

4401 Optical Oxygen Analyzer

The 4401 Optical Oxygen Analyzer provides some major advantages over traditional membrane style electrochemical sensors and zirconia cells. One analyzer can be used for both gas and liquid phase measurements. Phase fluorometric measurement technology gives a measurement that is impervious to pressure changes and chemicals poisoning. With a stainless steel NEMA 4X enclosure and FM / CSA Class 1, Div II rating this product is well suited for industrial oxygen measurement applications in upstream and midstream natural gas, refineries, chemical plants, and other harsh environments.

  • Phase fluorometric oxygen analyzer for gas / liquid applications
  • Low limit of detection: 0.5 ppm gas, 1.0 ppb liquid
  • Excellent long-term stability and low maintenance
  • Normal calibration quarterly to yearly
  • If damaged sensor inherently fails high
  • No membranes or chemical consumables
  • Serviceable sensing element lifetime 3 – 5 years
  • Quick response¬†full reaction and stabilization within 20 seconds
  • Wide range of sensor installation options, including:
    • BOS FIBERSENSE 4mm sensor for tubing
    • BOS FLEXSENSE NPT sensor for flowcells
    • BOS SAFETAP retractable sensor for process lines
  • Not affected by pressure changes
  • FM / CSA / ATEX / CE Approvals
  • ANSI / ISA 12.27.01 Dual Seal Classification
